Moon 310LP Neo MM og MC RIAA forstærker

20.125,00 DKK

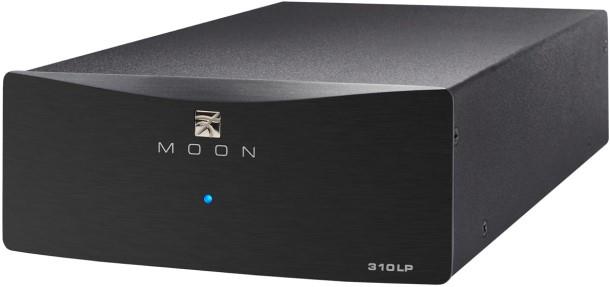

Moon 310LP Neo MM og MC RIAA forstærker


Moon 310LP er den bedste RIAA i Neo serien og er et super supplement til pladespilleren og din Moon Neo forstærker opsætning.
Model/Varenr.: SA800310LP
Lagerstatus: På lager
stk
Neo er godt nok den "lille serie" men det glemmer man nemt når man lytter på de fantastiske produkter i serien som "out -performer" selv meget dyrere produkter.



Design features



  • Large isolated power supply on a separate circuit board using a toroidal transformer with 2 stages of voltage regulation.

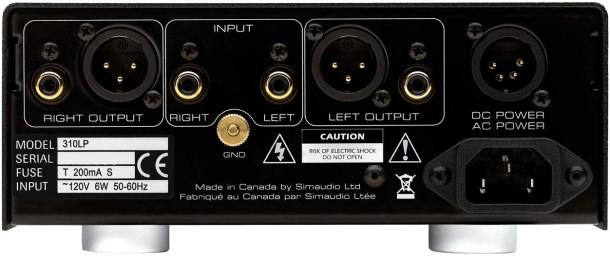

  • Single-ended RCA and Balanced XLR output connectors.





  • Can be driven with a compatible external power supply.





  • Power supply voltage regulation includes i 2 DCf (Indepen dent Inductive DC Filtering); 1 inductor for each and every IC in the audio circuit’s signal path – 2 stages in all.





  • Power supply features custom MOON electrolytic capacitors.





  • 4-Layer printed circuit boards with pure copper tracings for a much shorter signal path; this results in greater sonic accuracy and dramatically improved signal-to-noise ratio.





  • A symmetrical circuit design with accurate matching of the very finest high quality electronic components.




S/N Ratio (full scale @ 40dB gain) 110dBr

S/N Ratio (full scale @ 66dB gain) 88dBr

Frequency Response 20Hz - 20kHz ±0.5dB

Crosstalk @ 1kHz -100dB

Output impedance 50?

THD (20Hz - 20kHz) 0.001%

Intermodulation distortion 0.009%

Input overload @ 40dB gain 58mV RMS @ 1kHz

Input overload @ 66dB gain 3.0mV RMS @ 1kHz

Shipping weight 7.0 lbs. / 3.1 Kgs

Dimensions (width x height x depth) 7.0 x 3.0 x 11.0 in.

17,8 x 7,6 x 28,0 cm.
