Alpine KTA-450 Add-on forstærker til iLX-W650BT/W690D

Alpine KTA-450 Add-on forstærker til iLX-W650BT/W690D

1.799,00 DKK

Add-on forstærker til Alpine iLX-W650BT/W690D


Model/Varenr.: 245 KTA450
Lagerstatus: På lager
stk

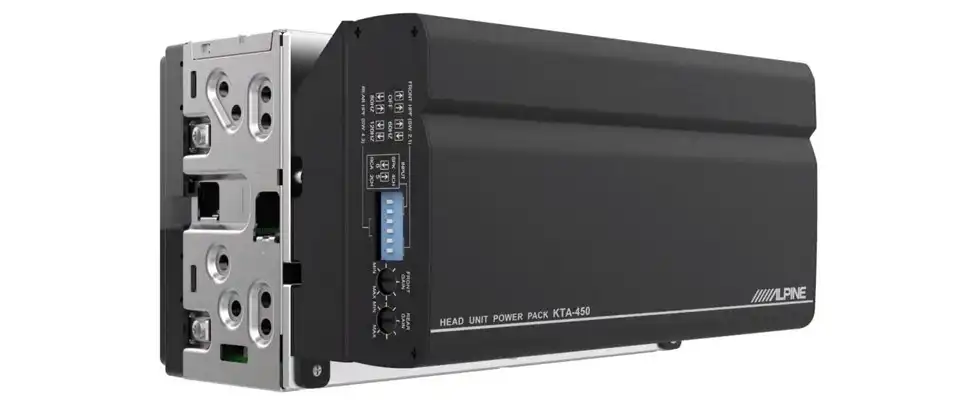

Alpine-KTA-450-lifestyle

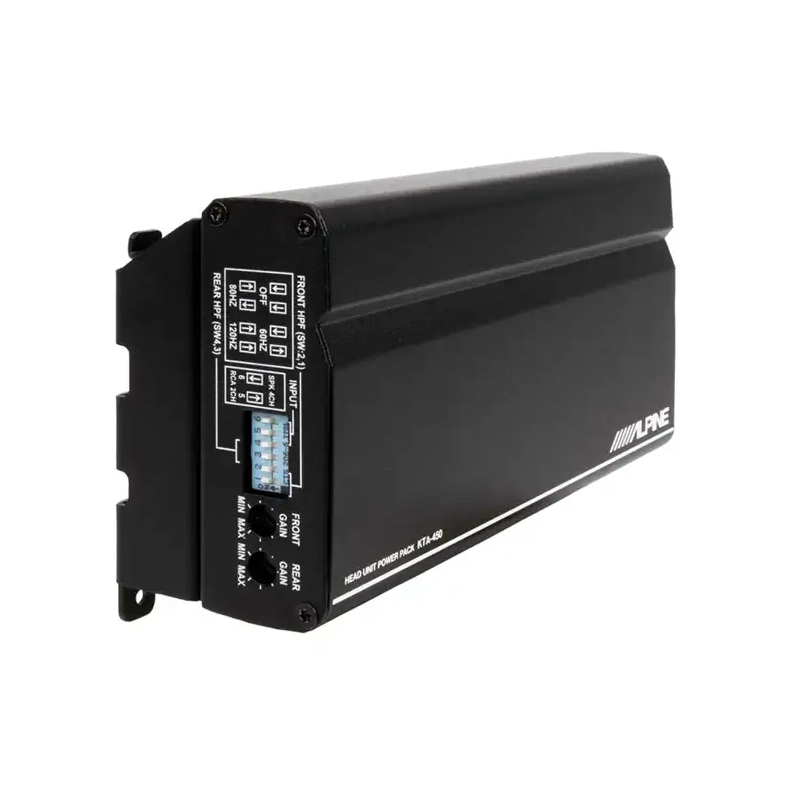

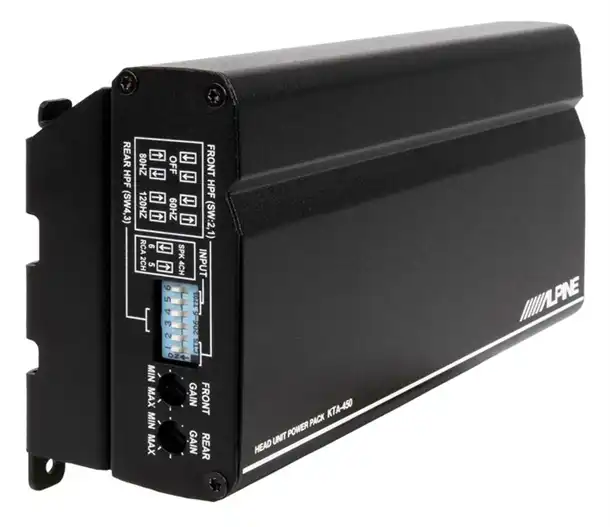

Alpine KTA-450 er en meget kompakt 4-kanals forstærker med 4x 50 Watt RMS, der hovedsageligt er designet til at blive monteret bag på Alpine iLX-W650BT eller iLX-W690D, men kan også bruges stand-alone i enhver universel konfiguration i din bil.



Med Alpines Dynamic Peak Power (DPP) -teknologi kan KTA-445 tilføje booste effekten med 4x 100 Watt RMS-effekt, når det er nødvendigt.




I kombination med Alpine iLX-W650BT vandt KTA-445 2019 Innovations Award på CES Show 2019. Hvis du planlægger at købe en Alpine iLX-W650BT eller iLX-W690D, vil denne lille forstærker give dig en betydelig forbedring af dit system.



Install

Terminal Layout: One side

Small footprint for easy installation

Connector terminal (for speaker and power cables)




General

Amplifier Type: Class-D (Digital)

Channel Design: 4/2 Channel (3 Channel configuration not possible)

DIP Switches

RCA and Speaker Level Inputs

Crossover: Adjustable High-Pass Filter (HPF)

Gain Control: Front / Rear Adjustable

Included Power-Stack bracket and screws for back-mount to iLX-W650BT

Included cable harness




RMS Power Ratings

Per Channel into 2 Ohms, 14.4V (?1%THD+N): 4 x 45W

Per Channel into 4 Ohms, 14.4V (?1%THD+N): 4 x 50W

Bridged, 4 Ohms, 14.4V: 2 x 100W




DPP (Dynamic Peak Power) Power Ratings

Per Channel into 2 Ohms, 14.4V (?1%THD+N): 4 x 100W

Per Channel into 4 Ohms, 14.4V (?1%THD+N): 4 x 100W




Sound Tuning

Crossover: Selectable HPF: 60, 80, 120Hz (-12dB/oct) on front and rear channels




General

Power Requirements: 14.4 V.DC (9 - 16 V allowable)

Frequency Response (+0/ -3dB: 1W into 4 Ohms): 15Hz – 50kHz

THD+N (@ 10W into 4 Ohms): <0.2%

S/N Ratio: AES-17, Ref: 1W into 4 Ohms: >85dB

Weight: 0.6kg




Dimensions

Width:  89mm

Height: 36mm (39mm with attached universal bracket)

Length: 181mm (198mm with attached universal bracket)
