Ampire BTR200-HD Bluetooth modul med ledning & Jack stik

Ampire BTR200-HD Bluetooth modul med ledning & Jack stik

399,00 DKK





Model/Varenr.: 25 BTR200HD
Lagerstatus: På lager
stk

                        AMPIRE-BTR100-lifestyle

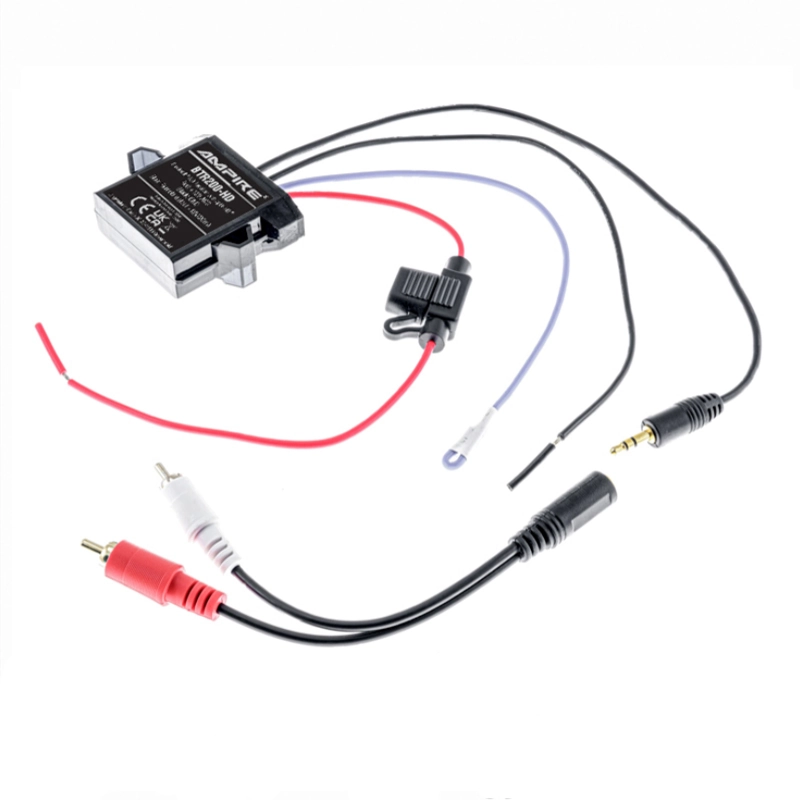

Ampire BTR200-HD er en modul med integreret Bluetooth, som er lavet til at blive monteret til en bil radio, der ikke har Bluetooth.



Når man har koblet BTR200-HD til radioen, skal man bare skifte over til AUX via radioen og så kan man stream musik fra sin smartphone via Bluetooth til radioen.



Man kobler modulet via billens ledningsnet til radioen og Jack stikket kobles til AUX indgang bag radioen.



Ampire BTR200-HD er en god løsning til dem, der vil beholde original radioen og få Bluetooth funktion til en lav pris.



CONNECTIONS
- Sound output: 3.5mm jack plug with 4V RMS
- Power supply: +12V ignition (ACC/K15) with fuse 2A
- Remote output: Blue cable +12VDC/20mA

EQUIPMENT
- 3.5mm jack plug with signal output 4V RMS
- splash-proof, marine certified
- automatic power on
- Automatic remote output (+12V DC)
- QDL licensed Bluetooth® QCC3034 chip
- A2DP in highest EDR specification
- aptX(TM) HD, aptX(TM), aptX(TM) Low Latency, SBC and AAC audio codec from Qualcomm®.
- BT audio streaming of lossless files such as Wave, Flac, Lossless, etc.
- SSID display name: BTR200-HD
- 10m range

SMARTPHONE COMPATIBILITY
- Android (Bluetooth® and Bluetooth® aptX(TM))
- Apple iOS (Bluetooth®)

OPTIONAL ACCESSORIES
55100-KLINKE AMPIRE interference suppression filter

TECHNICAL DATA
- Voltage: +12V DC
- Current consumption including remote output: <65mA
- Voltage/current remote output: +12V DC, max.20mA
- Bluetooth V5.0
- QCC3034 chip
- aptX(TM) HD, aptX(TM), aptX(TM) Low Latency, SBC and AAC audio codec from Qualcomm®.
- Frequency range: 18Hz-25kHz
- Encoding: Low Complexity Subband Codec (SBC)
- Bit rate: up to 384 kbps (48 kHz sampling)
- Audio output voltage: 4V RMS
- Bluetooth 5.0 / Transmit power <10mW EIRP and aptX
- Housing dimensions: Height: 20mm, Width: 65mm, Length: 50mm
- Red cable: +12V (0.459mm² or 26x 0.15mm), 305mm length
- Black cable: ground (0.459mm² resp. 26x 0.15mm), 305mm length
- Blue cable +12VDC/20mA (0.459mm² resp. 26x 0.15mm), 305mm length
