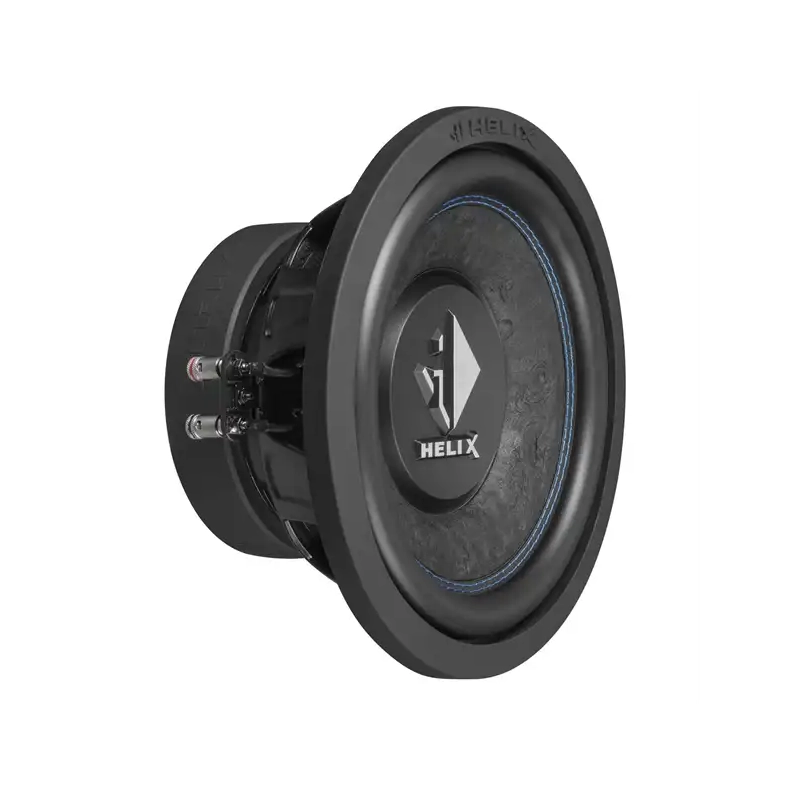

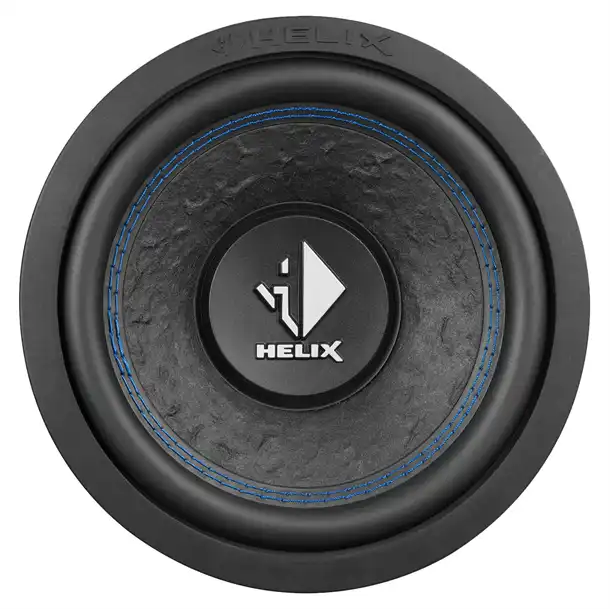

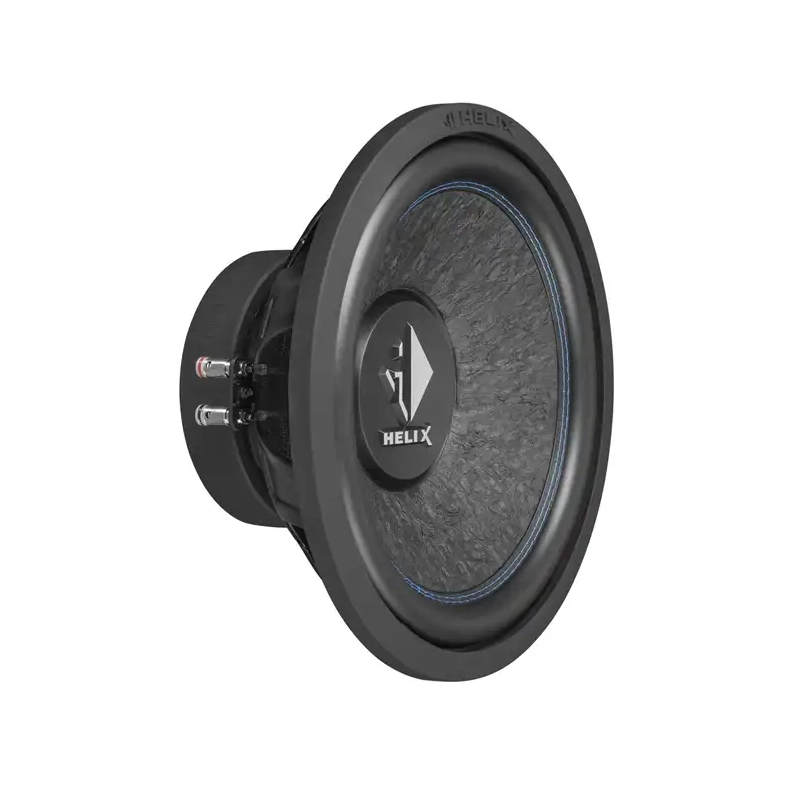

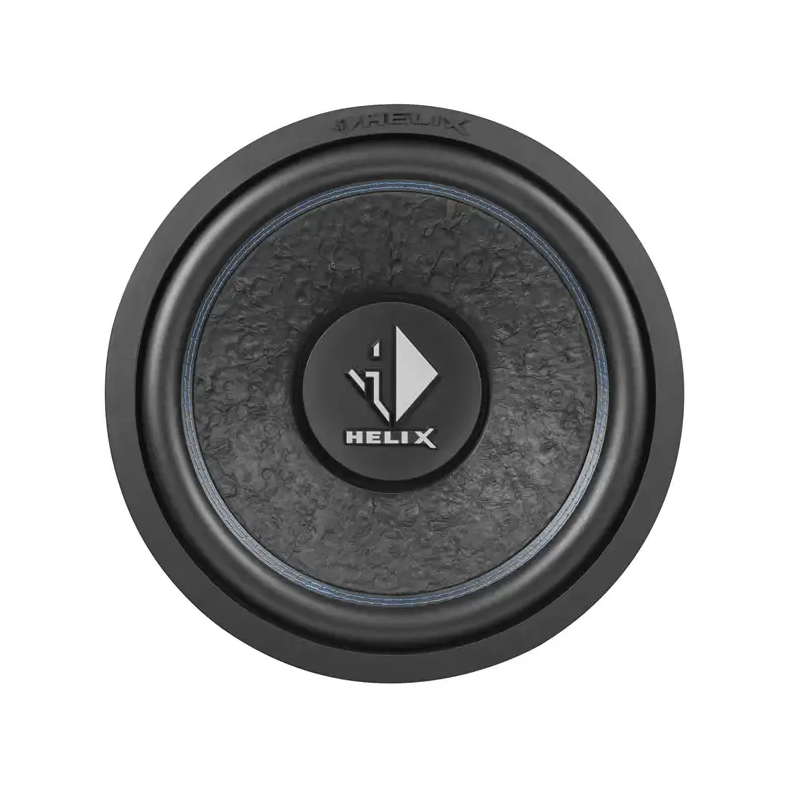

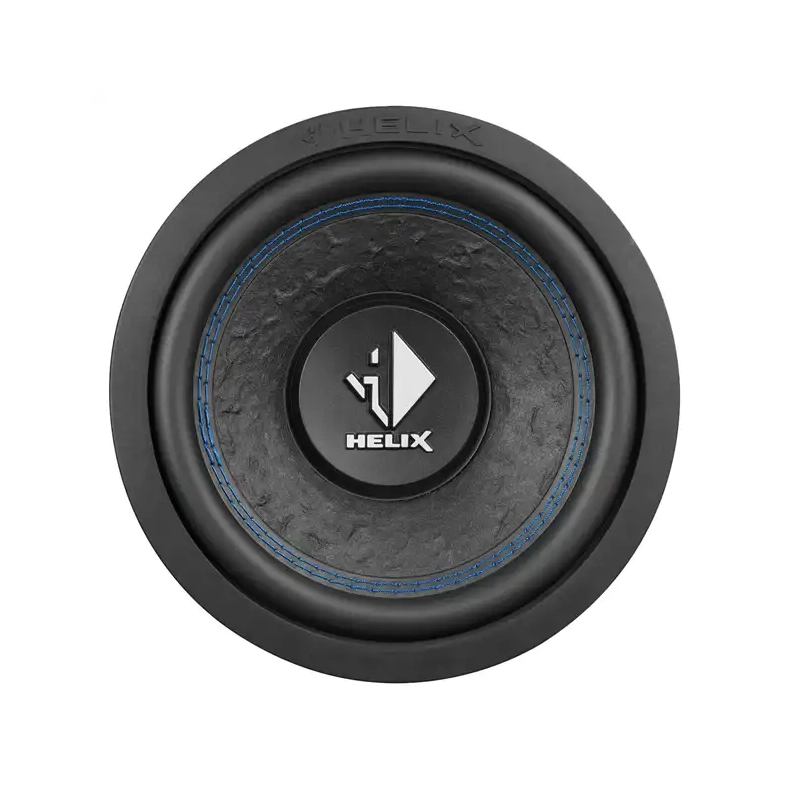

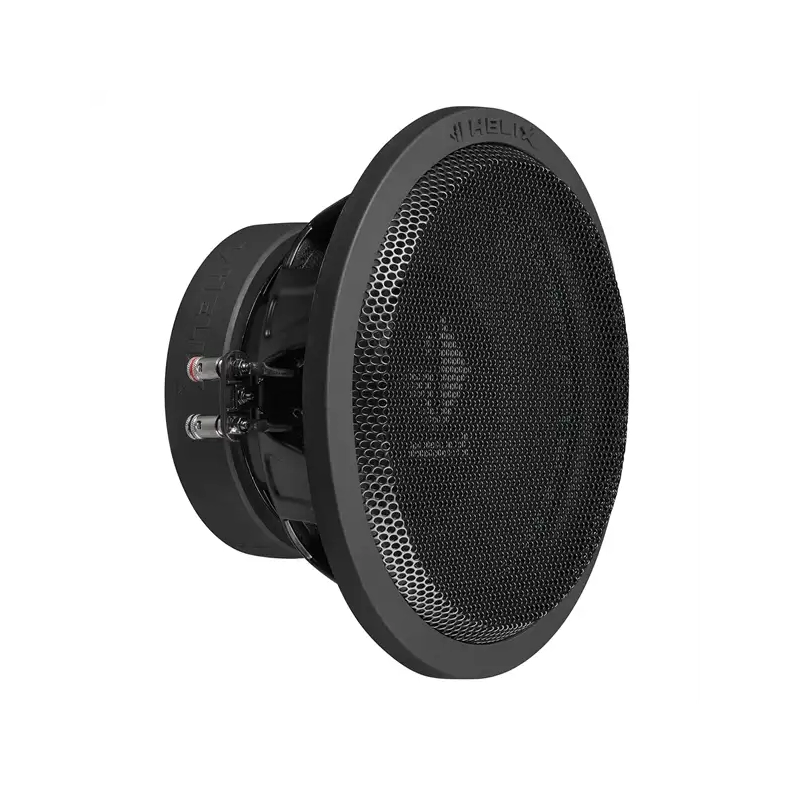

Helix K 8W 2 x 2 Ohm 8" Subwoofer løs enhed

Pris fra 1.149,00 DKK

Helix K-serie 8" Subwoofer 2 x 2 Ohm


Vælg Variant
stk
HELIX-Topbanner

Helix K 8W er en kraftuld subwoofer, der kombinerer nogen af de traditionelle materialer med Helix's pefektionisme og sans for lydkvalitet. Den er bygget med kraftigt pladechassis, stor magnet og en stiv papmembran.



Helix K 8W overrasker med høj lydkvalitet og power, der er langt ud over sin klasse. Så uanset, om du vil have en lækker velspillende bas, eller du skal skræmme livet af svigermor, så kan du roligt smide en eller flere K 8W subwoofere, i din bil.























































































































































































Power RMS / max.
P
300 / 600 Watts

Impedance
Z
2 x 2 ?

DC resistance
Re
2 x 1.6 ?

Resonance frequency
Fs
37 Hz

Mechanical Q factor
Qms
3.56

Electrical Q factor
Qes
0.46

Total Q factor
Qts
0.41

Compliance
Cms
262 ?m/N

Equivalent air volume
Vas
17 L

Force factor
B*I
10.7 Tm

Sensitivity 1 W / 1 m
SPL
86.0 dB

Cone area
Sd
219 cm²

Moving mass
Mms
69 g

Cone material

Hand-scooped paper cone

Mechanical resistance
Rms
4.54 kg/s

Voice coil diameter
ø
50.8 mm

Voice coil winding height

24 mm

Max. linear excursion
Xmax
+/- 8.0 mm

Outer diameter
ø
213 mm / 8.38"

Installation diameter
ø
182 mm / 7.17"

Installation depth

101 mm / 3.98"





Recommended enclosure volumes



Sealed box



Net volume

8 L

Lower limiting frequency (-3dB)

50 Hz

Recommended DSP settings

Recommended "self-define" highpass filter with 50 Hz cut-off frequency and Q = 1.5,

additional EQ filter 115 Hz / Q = 1.0 / -2.5 dB





Vented box



Net volume

8 L

Port diameter
ø
60 mm / 2.36"

Port area

28 cm²

Port length

42 cm / 16.5" (angled port)

Port tuning frequency
Fb
43 Hz

Lower limiting frequency (-3dB)

45 Hz

Recommended DSP settings

Recommended "self-define" highpass filter with 43 Hz cut-off frequency and Q = 1.5,

additional EQ filter 120 Hz / Q = 0.8 / -3.5 dB



Scope of delivery

1 x Subwoofer HELIX K 8W [DVC2]

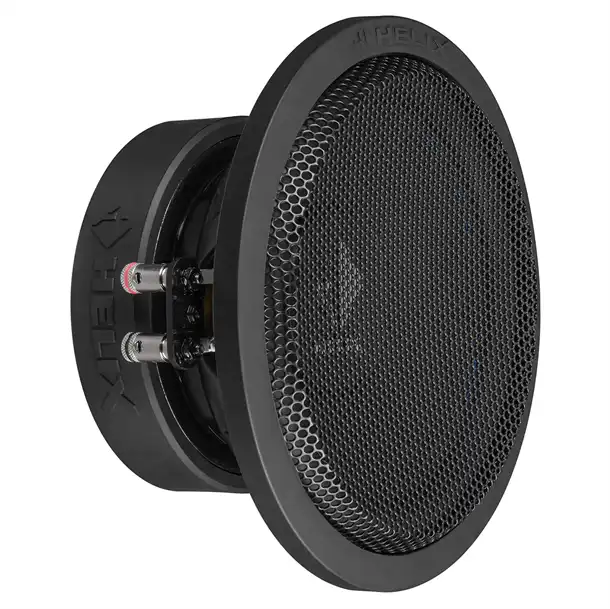

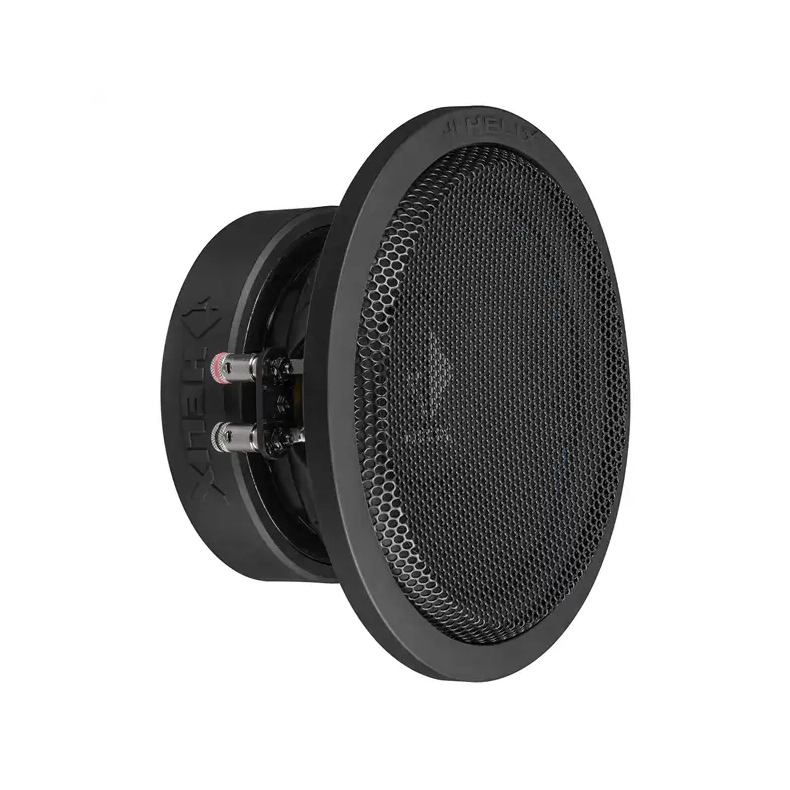

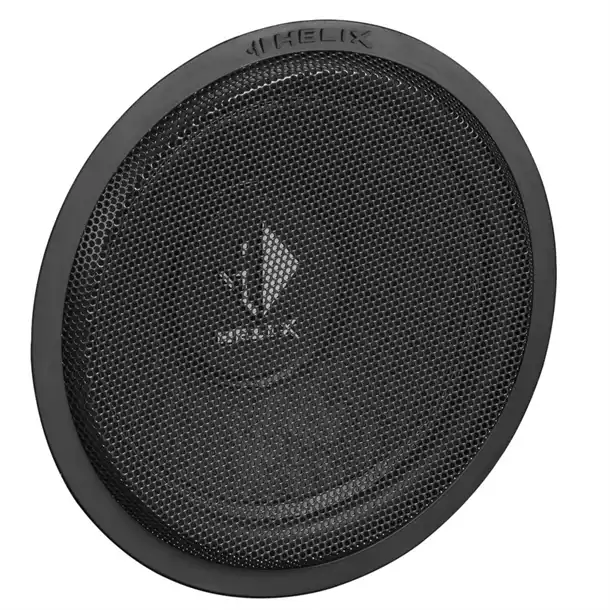

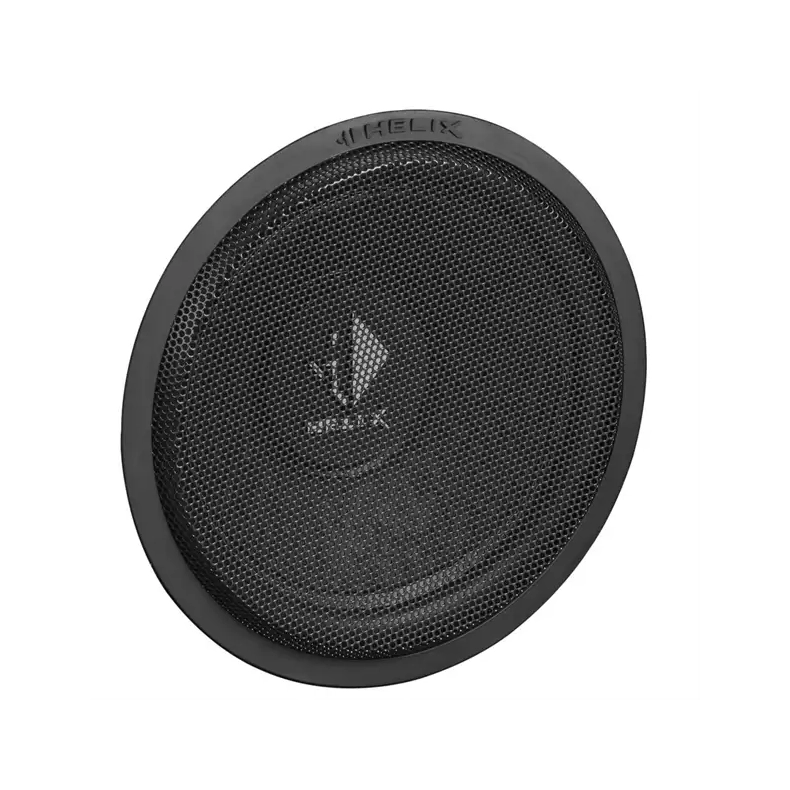

1 x Grille

1 x Gasket

1 x Data sheet
